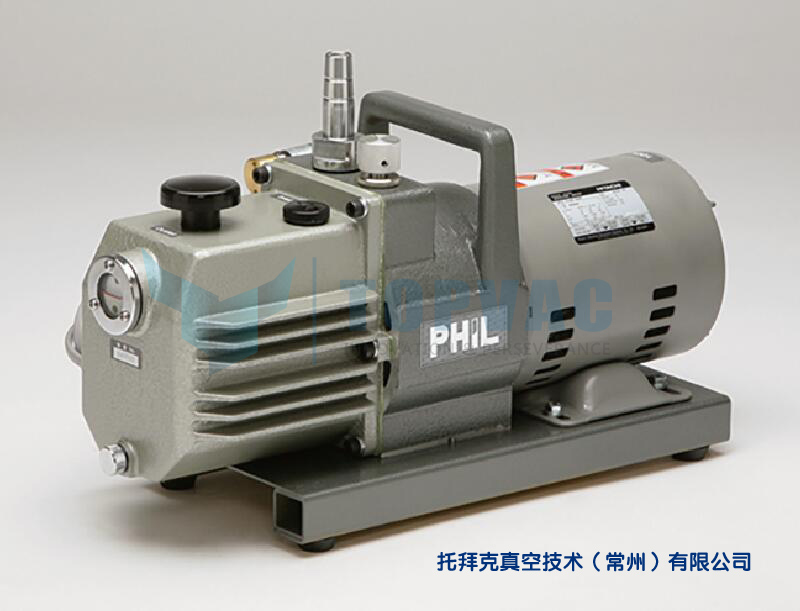

DW-60
| 排氣速度Pumping speed | L/min | 50Hz | 60Hz | |
| 50 | 60 | |||
| 到達壓力 | Pa | 6.7×10 —2 | ||
| 6.7 | ||||
| 電動機出力Motor power | W | 200 | ||
| 電 壓Voltage | V | 1φ 100V | ||
| 回轉(zhuǎn)數(shù)Rated rotational speed | min —1 | 50Hz | 60Hz | |
| 1440 | 1730 | |||
| 油 量Oil capacity | L | 0.9 | ||
| 寸 法Dimensions | mm | W | 425 | |
| D | 185 | |||
| H | 271 | |||
| 吸氣口徑Inlet | mm | 16 | ||
| 質(zhì) 量Weight | kg | 18 | ||
| (選配)油霧處理器Oil mist trap (Option) | 標準型Standard type | OMT-O-50 | ||
| OMT-D-100 | ||||
| 在線型Directional type | OMT-C-50 | |||
| OMT-C-100 | ||||
